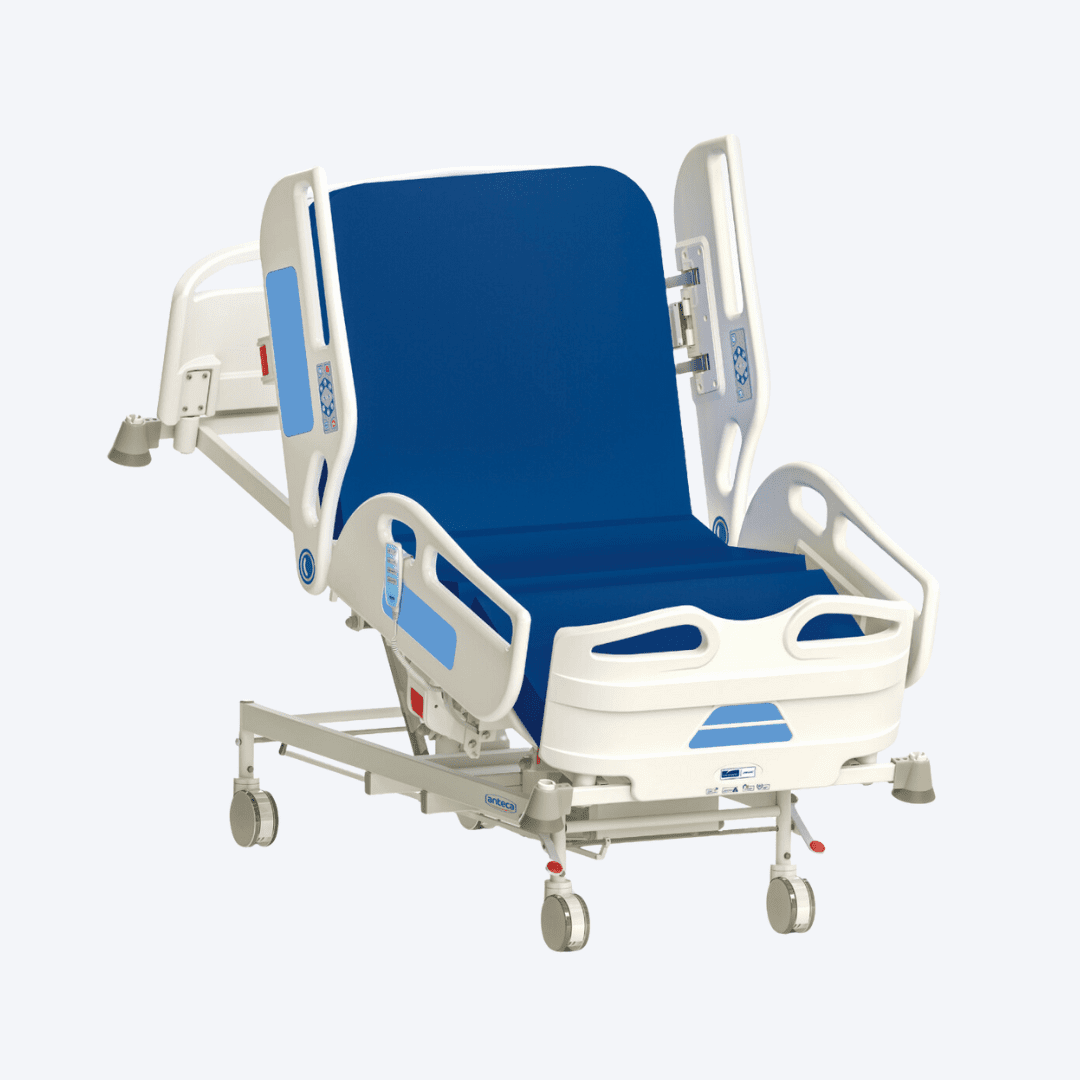

Anteca ICU

Technical Specifications

 Overall  dimensions ( approx) ( Length, Width ) 2140 mm x 1020 mm
Mattress Platform Size ( Length, Width ) 1890 mm x 860 mm
Mattress Platform Frame  ( Length, Width ) 2080 mm x 955 mm
 Height of the Mattress Platform ( without mattress) 450 mm to 820 mm
 Backrest angle 0- 70 degree
 Knee Rest Angle  0-45 Degree
 Trendelenburg / Reverse Trendelenburg 0 - 17 Degree
 Working Load Safe Value 250 Kgs
Patient bearing capacity  200 Kgs

Features

  • Single-touch key for the cardiac chair, featuring automatic CPR functionality
  • Motorized adjustments for the backrest, knee rest, height, Trendelenburg, and Reverse Trendelenburg.
  • Dual-side manually operated CPR for added convenience.
  • An angle indicator is provided for the backrest, Trendelenburg, and Reverse Trendelenburg.
  • The bed is equipped with full-length polymer-molded split-type safety side rails, easily removable polymer-molded head and foot panels without the need for tools, four corner safety rubber buffers, and an inbuilt SMPS.
  • It also features a four-section metallic perforated top, a urine bag holder, and a heavy-duty stainless steel IV pole.
