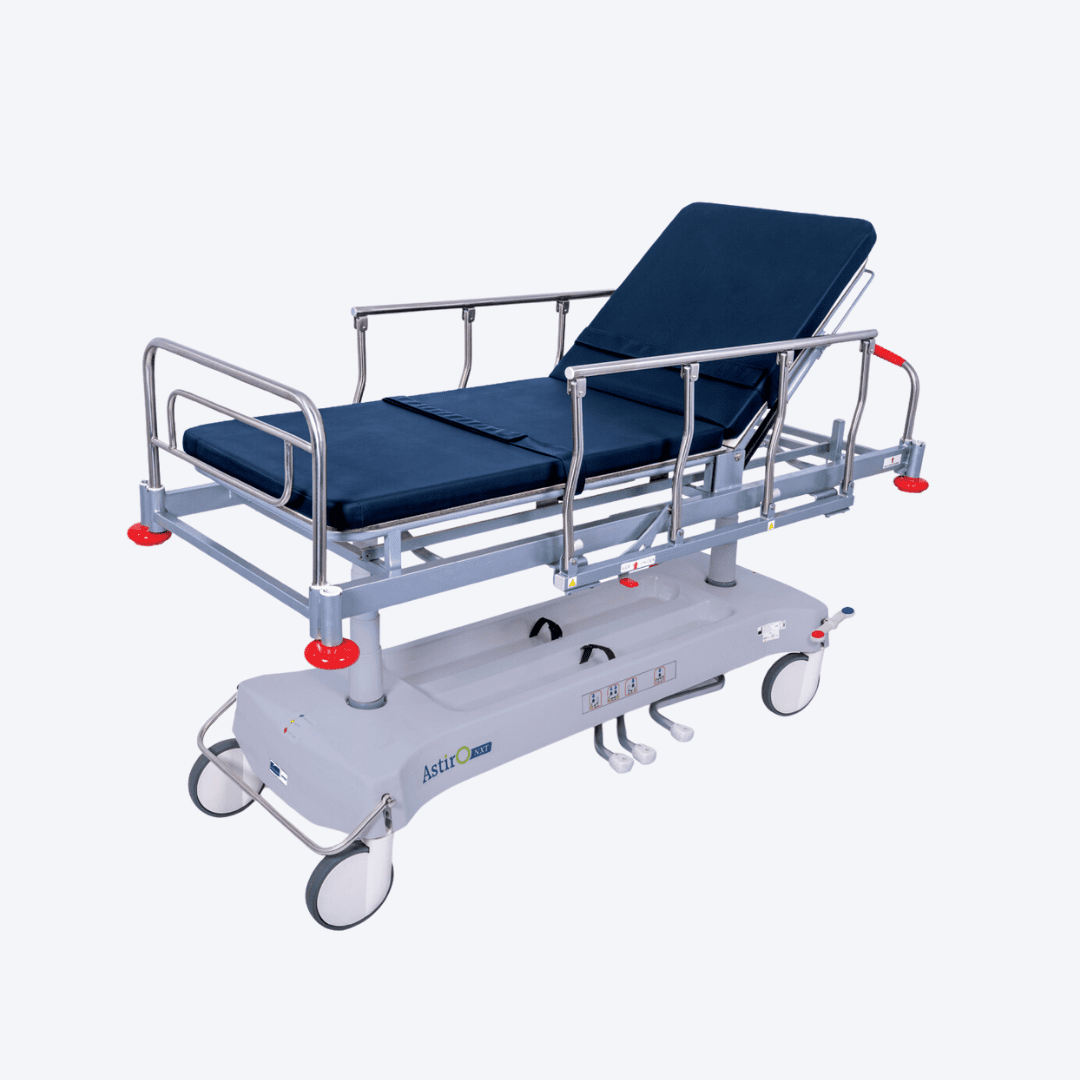

AstirO Nxt
Technical Specifications
| Overall dimensions ( approx) | ( Length, Width ) 2060 mm x 870 mm |
| Mattress Platform Size and Dimension | ( Length, Width ) 1855 mm x 700 mm |
| Mattress Platform Frame | ( Length, Width ) 2000 mm x 980 mm |
| Height of the Mattress Platform ( without mattress) | 630 mm to 950 mm |
| Backrest angle | 0- 65 degree |
| Trendelenburg / Reverse Trendelenburg | 0 - 14 Degree |
| Working Load Safe Value | 170 Kgs |
| Patient bearing capacity | 150 Kgs |
Features
- Hydraulic pump with dual-sided foot pedals for seamless height adjustment.
- Manual backrest adjustment with gas spring assistance ensures user comfort.
- Hydraulic pump with dual-sided foot pedals enables TR/RTR operation.
- Pair of fully collapsible stainless steel safety side railings enhances patient security.
- Versatile design featuring interchangeable stainless steel safety boards and push handles on both the head and leg ends.
- Stainless steel heavy-duty IV pole, equipped with two hooks for optimal medical equipment suspension.
- 200 mm diameter single-wheel castor with a central locking mechanism ensures efficient mobility from all four sides.
Four corner safety buffers, each with a diameter of 100 mm, provide additional safety measures.
- Dedicated oxygen cylinder cage for secure storage and easy accessibility.
- Pair of safety belts enhances patient safety during medical procedures.
- Additional stainless steel heavy-duty IV pole with two hooks for expanded equipment suspension capabilities.
- Dedicated oxygen cylinder cage ensures secure storage and accessibility, prioritizing patient well-being and adherence to safety protocols.
