Focus Imaging System

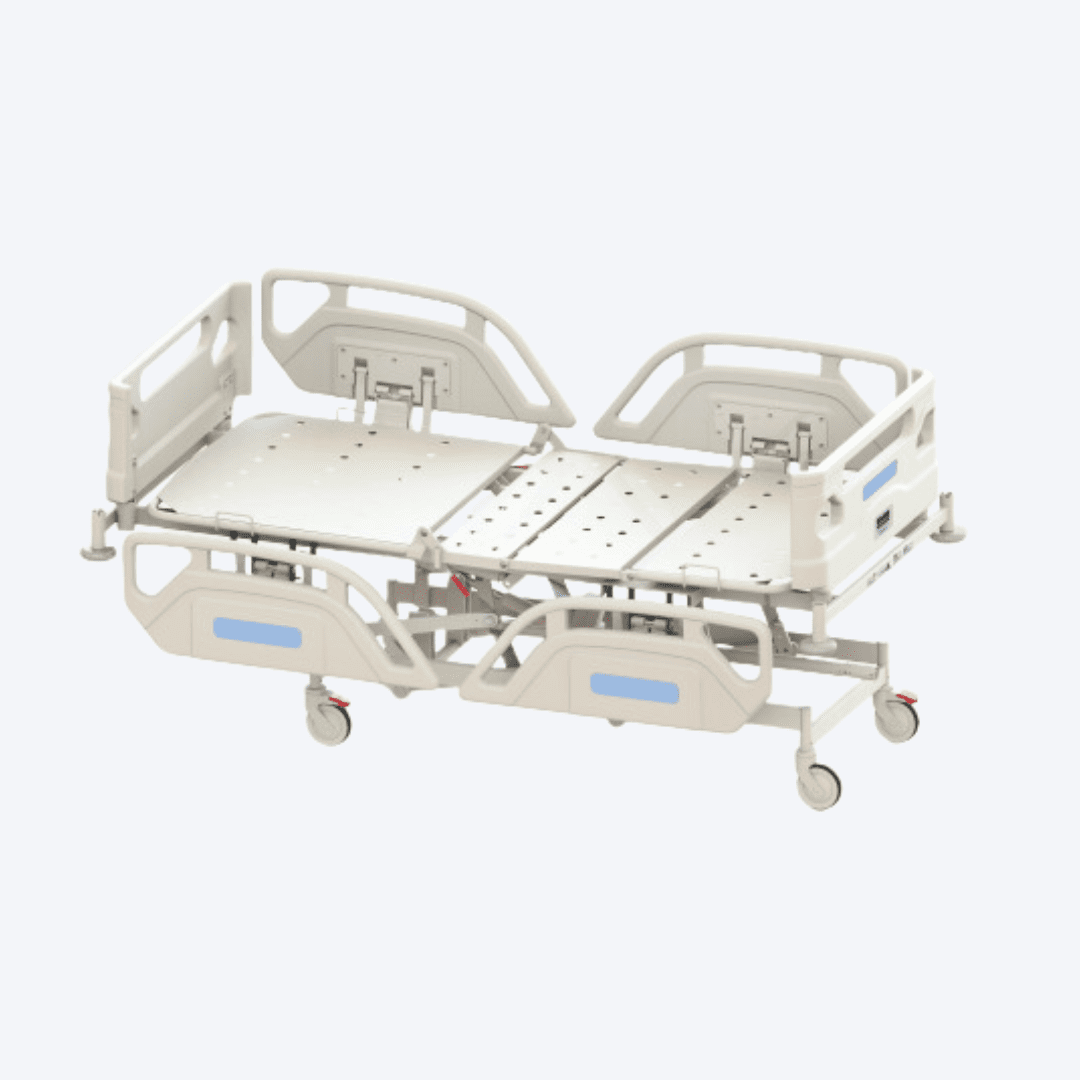

DX One Series Comfort Bed

Technical Specifications

 Overall  dimensions ( approx) ( Length, Width ) 2145 mm x 1020 mm
Mattress Platform Size ( Length, Width ) 1900  mm x 860 mm
Mattress Platform Frame  ( Length, Width ) 2080 mm x 1020 mm
 Height of the Mattress Platform ( without mattress) 535 mm to 890 mm
 Backrest angle 0- 70 degree
 Knee Rest Angle  0-45 Degree
 Working Load Safe Value 200 Kgs
Patient bearing capacity  175 Kgs

Features

    • Motorized adjustments for the backrest, knee rest, height, and auto-contour feature.
    • Wired handset control for both patients and attendants.
    • Dual-side manually operated CPR lever for added flexibility.
    • Polymer-molded split-type safety side rails (2 sets) for increased safety.

    • Easily removable polymer-molded head and foot panels without the need for tools.

    • Four corner safety rubber buffers with a diameter of 100 mm for enhanced stability.

    • 125 mm diameter single-wheel high-grade synthetic body castors with a diagonal locking mechanism.

    • Inbuilt SMPS for reliable power supply.

    • 100 mm thick four-section mattress for patient comfort.

    • Urine bag holder for added convenience.

    • Stainless steel heavy-duty IV pole with two hooks.
