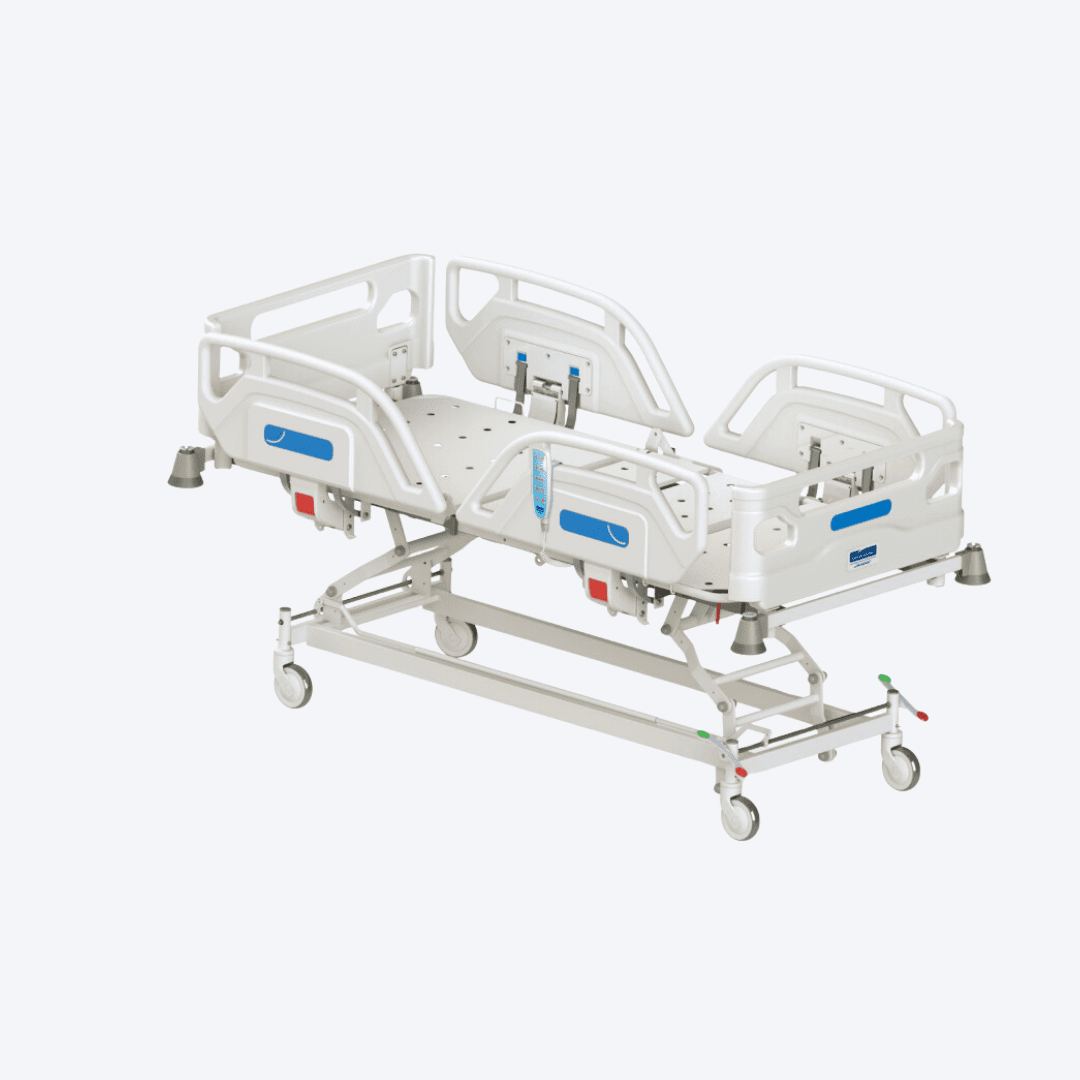

EX 4411 Hospital Bed

Technical Specifications

 Overall  dimensions ( approx) ( Length, Width ) 2150 mm x 1020 mm
Mattress Platform Size ( Length, Width ) 1890 mm x 865 mm
Mattress Platform Frame  ( Length, Width ) 2070 mm x 955 mm
 Height of the Mattress Platform ( without mattress) 395 mm to 695 mm
 Backrest angle 0- 70 degree
 Knee Rest Angle  0-45 Degree
 Trendelenburg / Reverse Trendelenburg 0 - 11 Degree
 Working Load Safe Value 250 Kgs
Patient bearing capacity  175 Kgs

Features

  • It features one touch key for cardiac chair and automatic CPR functionality.
  • For Backrest, knee rest, height, Trendelenburg, and Reverse Trendelenburg, the motorised adjustments are available. An angle indicator is included for the backrest, Trendelenburg, and Reverse Trendelenburg positions.
  • Wired handset control for both the patient and attendant, ensuring convenient operation.
  • Dual-side manually operated CPR adds flexibility in emergency situations.
  • The bed is equipped with full-length polymer-molded split-type safety side rails and polymer-molded head and foot panels that can be easily removed without the need for tools.
  • Four corner safety rubber buffers enhance safety and stability. The four-section metallic perforated top provides durability and practicality.
  • For smooth mobility, the EX 4411 hospital bed features 125 mm diameter one-wheel high-grade synthetic body castors with a diagonal locking mechanism.
  • The 100 mm thick four-section mattress ensures patient comfort, and the EX 4411 hospital bed is complemented by a heavy-duty stainless steel IV pole.
  • It also includes an inbuilt SMPS for reliable power supply.
